13.3 Inch 300cd/m² Brightness LCD Monitor with 30pin Connector and WLED Backlight

Product Categories
FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

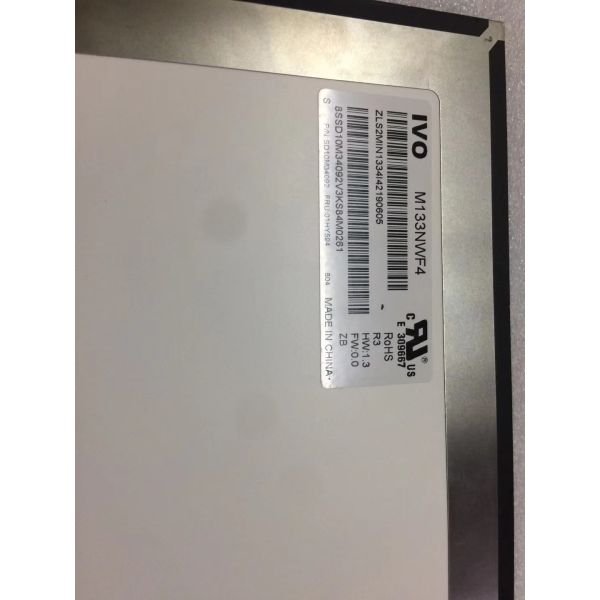

13.3 Inch 300cd/m² Brightness LCD Monitor with 30pin Connector and WLED Backlight

  • 1
  • 2

Brand Name : IVO

Model Number : M133NWF4

Certification : Rohs,CE,FCC

Place of Origin : KOREA

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass oled

color : 16.7M colors

model : WLED

style : wide screen high resolution 1920*1080

brightness : 300cd

connector : 30pin

contrast ratio : 1200:1

working life : 15K hours

Contact Now

  • Manufacturer
  • IVO
  • Model Name
  • M133NWF4 R0 (IVO0536)
  • Screen Size
  • 13.3 inch
  • Screen TypeLCM, a-Si TFT-LCD
  • Pixel Number1920(RGB)×1080 (FHD)
  • ArrangementRGB Vertical Stripe
  • Active Area(mm)293.76 × 165.24 (H×V)
  • Outline(mm)300.26 × 187.5 × 2.5 (H×V×D)
  • Bezel Area(mm)-
  • TreatmentAntiglare
  • Luminance300 cd/m² (Typ.)
  • Contrast Ratio1200 : 1 (Typ.) (TM)
  • Viewing Angle85/85/85/85 (Typ.)(CR≥10)
  • Response30 (Typ.)(Tr+Td) ms
  • Good View atSymmetry
  • Work ModeIPS, Normally Black, Transmissive
  • Color Depth16.7M 72% (CIE1931)
  • BacklightWLED , 15K hours , With LED Driver
  • Outline ShapeSlim (PCBA Flat, Depth ≤3.2mm)
  • Used for
  • Refresh Rate60Hz
  • TouchscreenWithout
  • Signal Type
  • eDP (2 Lanes) , Connector , 30 pins
  • Voltage Supply
  • 3.3V (Typ.)
  • Max. Ratings
  • Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
  • 13.3 Inch 300cd/m² Brightness LCD Monitor with 30pin Connector and WLED Backlight

It's 300cd/m2 lcd MODEL for Laptop compnuter screen use

All our LCD LED screen monitor module panel products will be full test one by one before sending .
